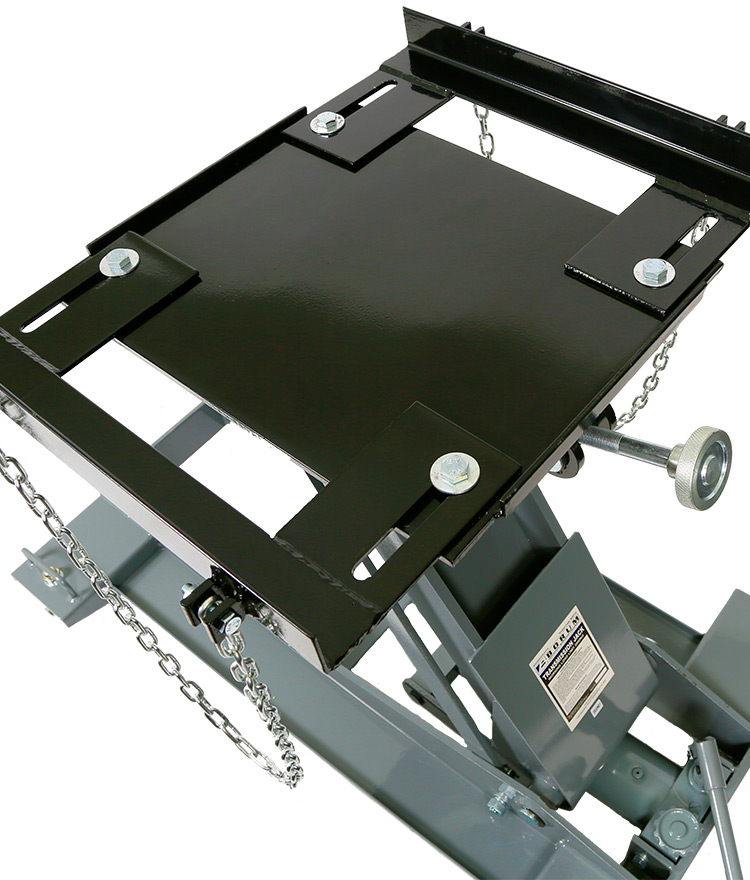

Ergo-Lift BELLY PLATE & TRANSMISSION LIFTER 2000KG

Features

• Designed for lifting & lowering heavy vehicle transmissions
• Frame is constructed of industrial-grade steel and built to exacting standards for quality and durability
• The adjustable lifting platform can be tilted forward, backward and side to side for optimum alignment of transmission bolt patterns and pins
• High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to lift load
• Industrial strength hydraulic system is protected from overload damage
• Filled with industrial grade hydraulic fluid
• Rugged heavy industrial steel wheels and full swivel ball bearing castors
• User-friendly 360° rotating pumping handle for maximum multi-directional operation
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
• Paint is oil, grease and dirt-resistant for easy cleanup
• Universal mounting lifting platform provides a wide fore and aft tilt range
• Includes heavy safety chain load-restraint for raising and lowering safety

   Specifications

• Safe Working Capacity: 2,000kg
• 2 Way Tilt: 30° Fore – 30° Aft
• Minimum Height: 210mm
• Maximum Height: 900mm
• Minimum Lifting Platform Dimension: 385 x 470mm
• Maximum Lifting Platform Dimension: 570 x 470mm
• Swivel Castor Wheel Dia: 100mm
• Handle Length: 850mm
• Chassis Dimensions: 1160 x 685mm
• Nett Weight: 130kg
• Carton: 1220 x 720 x 300
• Gross Weight: 140kg

Intended Use

For professional heavy duty use on truck, agriculture, construction and mining applications for the removal and installation of heavy transmissions or differentials.
