Ergo-Lift

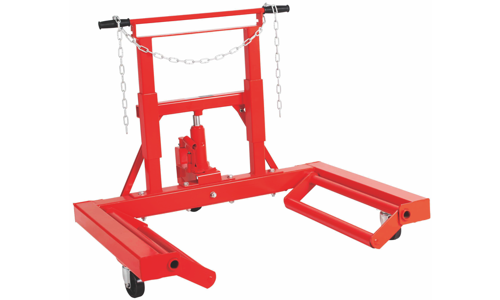

Ergo-Lift TRUCK WHEEL DOLLY LIFTER 750KG
Features
- Hydraulic system actuated to provide smooth, positive power for the removal and installation of single, tandem and duplex tyres and wheels
- Heavy duty steel frame tilts to allow precise positioning of truck tyres.
- Supports heavy commercial rims and tyres
- Rolls easily on quality steel bearing castors
- Includes heavy duty chain to keep load secure
- Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
- Paint finish is oil, grease and dirt-resistant for easy clean up
Specifications
- Safe Working Capacity: 750kg
- Max. Tyre Diameter: 1300mm
- Lift Arm Length: 660mm
- Lift Arm Spread: 533mm (min) to 635mm (max)
- Lifting Range: 60 – 275mm
- Tilt Range: -2.5 to 10 degrees
- Hydraulic Ram Travel: 100mm
- Dimensions: 787(L) x 1092(W) x 895(H)mm
- Weight: 70kg
