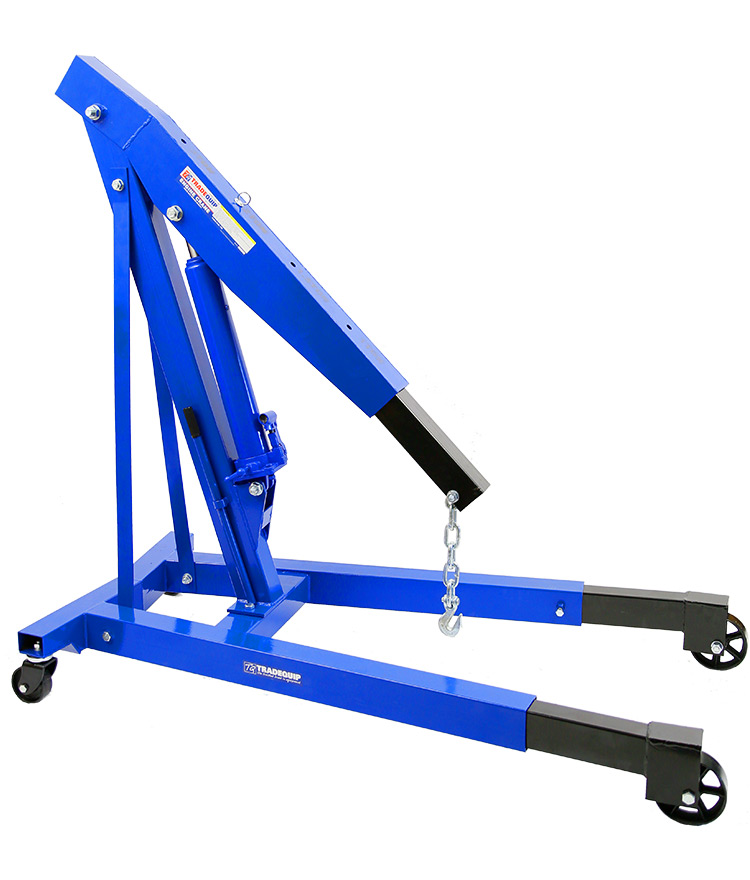

Ergo-Lift | Mobile Floor Crane
Floor Crane 3000kg
Features
- Industrial grade engine crane
- Heavy duty hydraulic pump
- Adjustable boom in four positions for lifting
- Robust steel fabricated legs with structural supports
- Large castor wheels for easy mobility
Specifications
- Safe Working Capacity: 3,000kg
- Folded Height: 1540mm
- Maximum Lifting Height @ 3000kg: 1745mm
- Maximum Lifting Height @ 1000kg: 2088mm
- Jib Length Fully Retracted @ 3000kg: 1100mm
- Jib Length Fully Extended @ 1000kg: 1730mm
- Overall Length Fully Extended: 2385mm
- Overall Length Fully Retracted: 1480mm
- Overall Width Fully Extended: 875mm
- Overall Width Fully Retracted: 785mm
- Leg Height 190mm
- Nett Weight: 121.5kg
- Carton 1 of 3 : 1330 x 860 x 100mm (Weight: 29kg)
- Carton 2 of 3 : 1470 x 300 x 200mm (Weight: 82kg)
- Carton 3 of 3 : 700 x 180 x 150mm (Weight: 15kg)
Intended Use
For regular professional use, to raise and/or lower diesel engines and transmissions during service or repair work.
