Heavy Duty Rotary Parts Washers

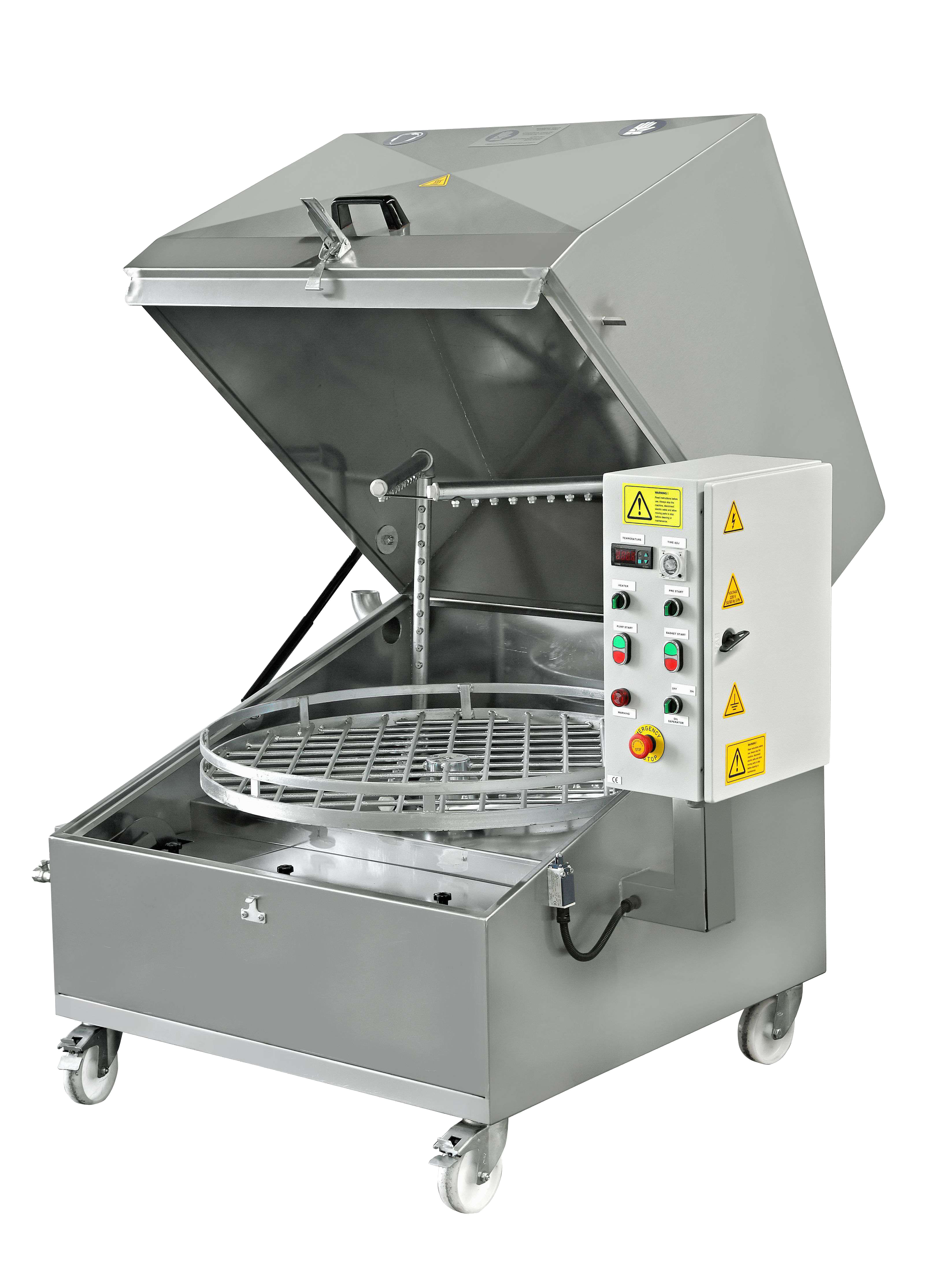

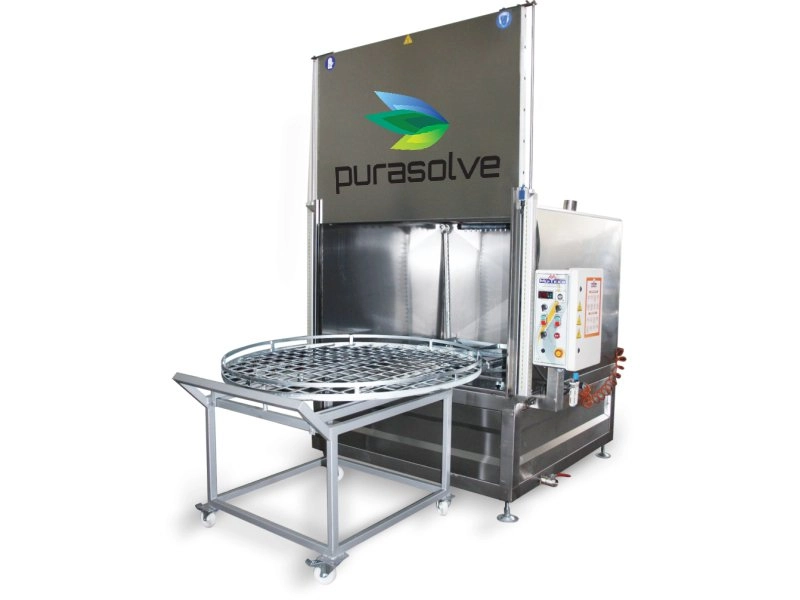

The Purasolve Rotary Parts Washers are ideal for cleaning parts quickly and efficiently without the need for dangerous solvents. The units were designed with ease of use, power savings, time savings, and overall cost effectiveness in mind.
The fully enclosed cleaning process includes a rotating basket with high pressure jets of cleaning fluid to efficiently clean parts without wasting production time.
Different length wash cycles can be set depending on the degree of dirt build up.
The Purasolve Parts Washers are available for purchase or rental.
Standard Features
The Purasolve Rotary Parts Washers come with the following standard features:
- Tank floor tilted to drain valve
- 240-volt power control box
- Spray bars
- Forklift compatible
- Lid seal
- Heat On light
- Power On light
- Insulated cabinet
- Cycle timer
Specifications
| Model | PSR900PW | PSR1100PW | PSR1350PW | PSR1600PW |
| Machine Dimensions | 1000 x 1000 x 1200 | 1250 x 1250 x 1600 | 1500 x 1500 x 1600 | 1750 x 1750 x 1900 |
| Basket Size Dia mm | 900mm | 1100mm | 1350mm | 1600mm |
| Loading Height | 450mm | 600mm | 700mm | 800mm |
| Basket Capacity | 500kg | 750kg | 1000kg | 2000kg |
| Pump Power | 2.2 kW x1 | 2.2 kW x1 | 2.2 kW x2 | 2.2 kW x2 |
| Heater Power | 7.5 kW | 15 kW | 15 kW | 30 kW |
| Electrical/ Phase | 415V/3 | 415V/3 | 415V/3 | 415V/3 |
| Timer | 0-30 minutes | 0-30 minutes | 0-30 minutes | 0-30 minutes |
| Thermostat | 0-120 °C | 0-120 °C | 0-120 °C | 0-120 °C |
| Tank Capacity | 75L | 180L | 250L | 275L |
| Loading Trolley | – | Included | Included | Included |
