Large Waste Bin Tipper

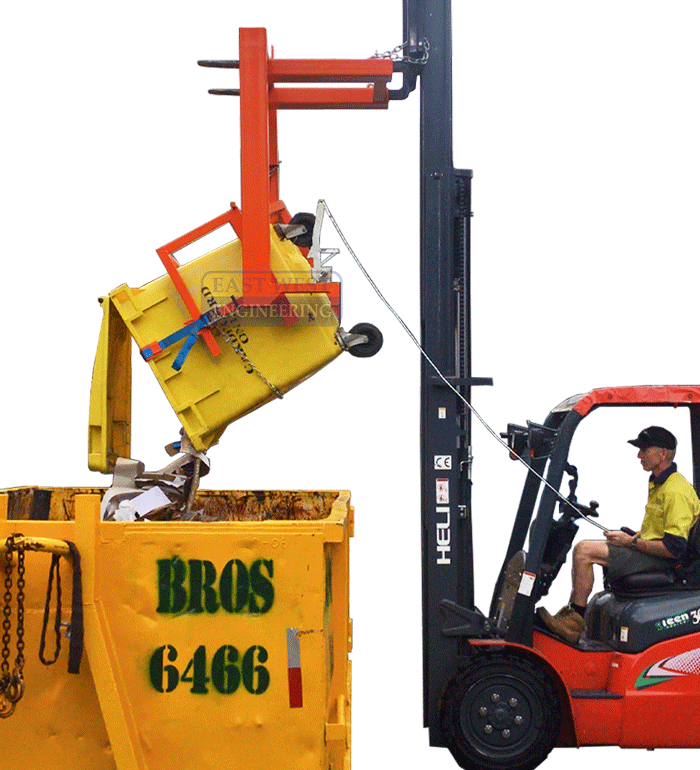

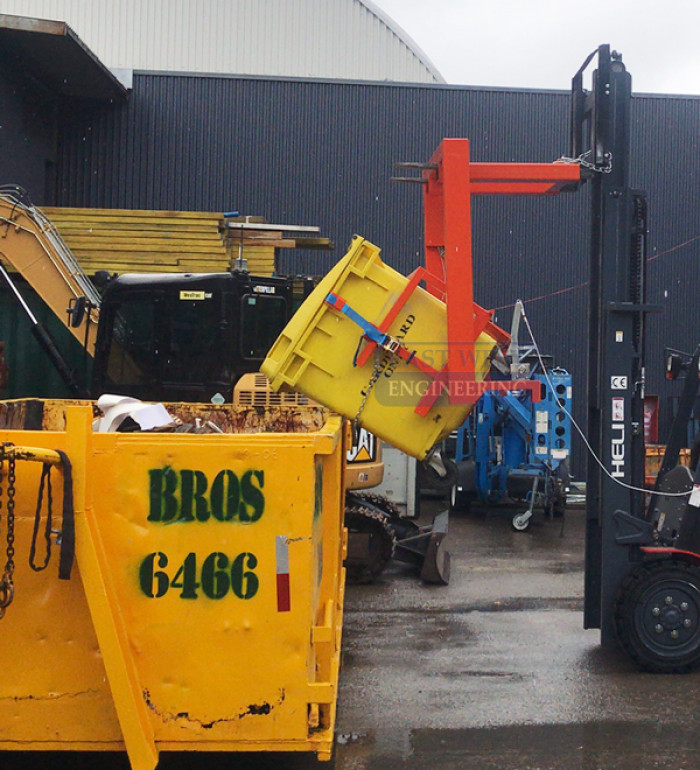

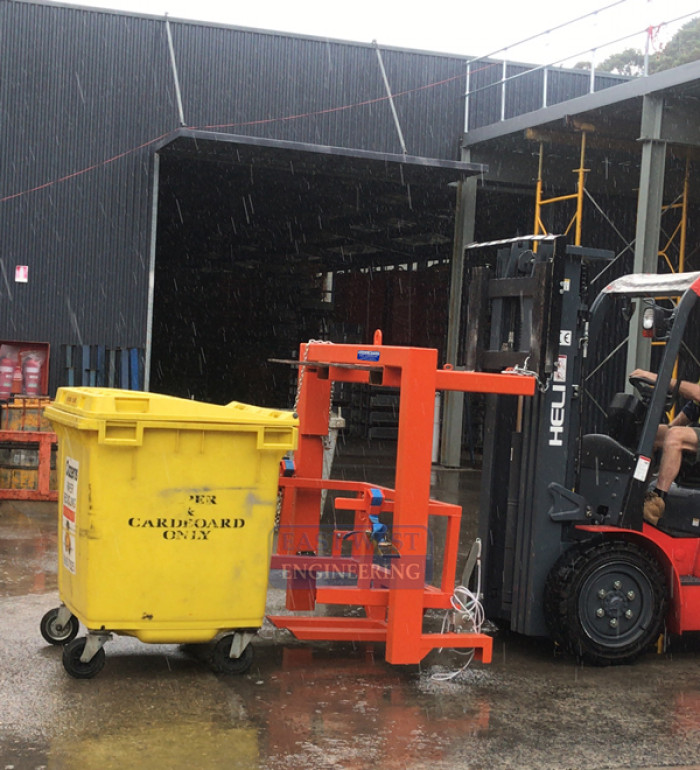

The Waste Bin Tipper is designed to safely transport about the worksite and empty a 660 litre or 1100 litre plastic wheelie bin by forklift or overhead crane.
FEATURES:
• Allows 160° rotation of a 660 or 1100 litre wheelie bin
• Suitable for operation with a forklift or overhead crane
• Pull cord tipping action activated at a safe distance by operator
• Shock absorber controls tipping forces
• Ratchet tensioners for simple and secure fastening of bin to attachment
• Enamel paint finish
| Working Load Limit (WLL) | 500kg |
| Load Centre | 850mm |
| Tipping Angle | 180° |
| Unit Weight | 185kg |
| Fork Pocket Size | 185 x 65mm |
| Fork Pocket Centres | 800mm |
