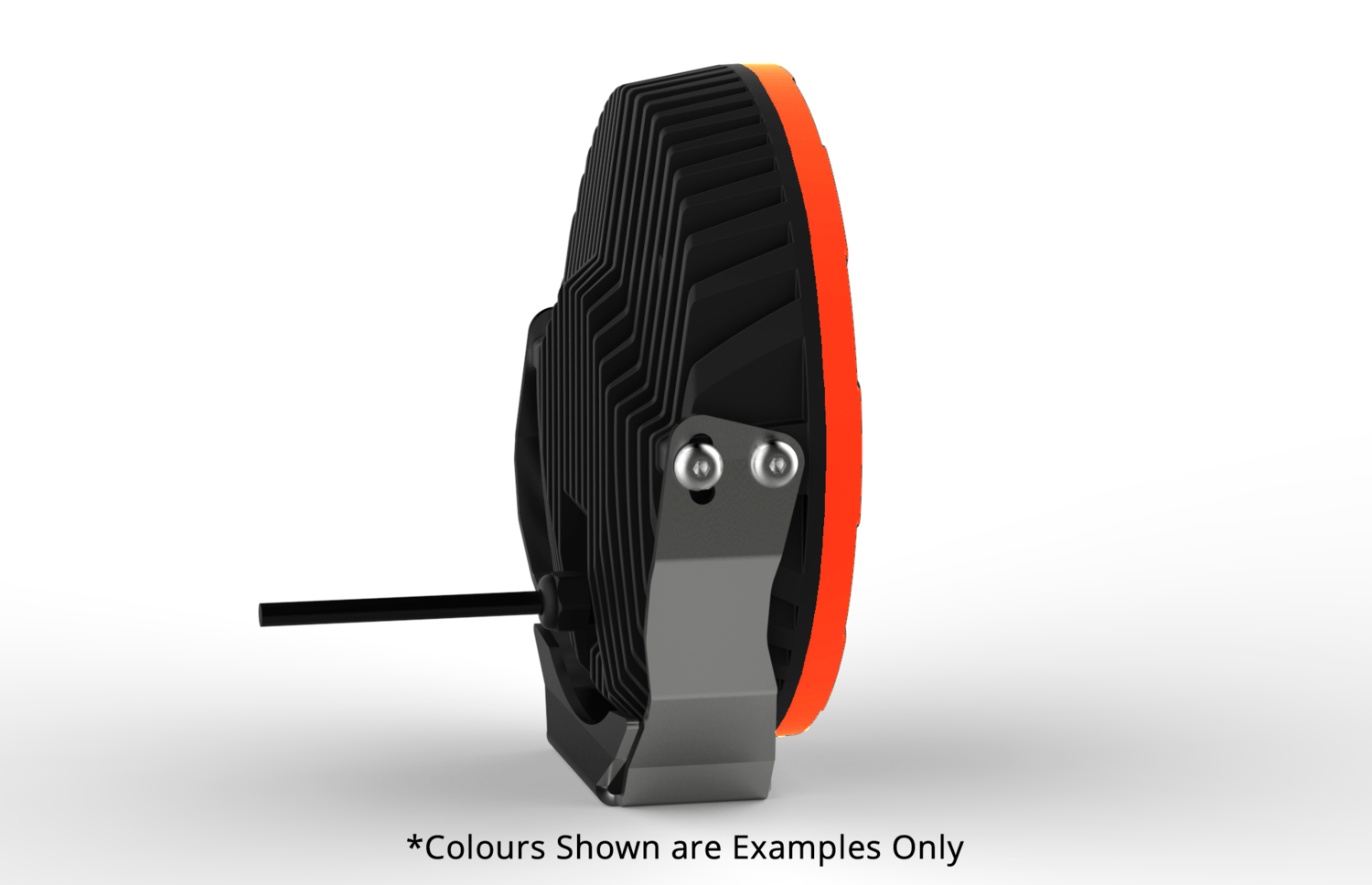

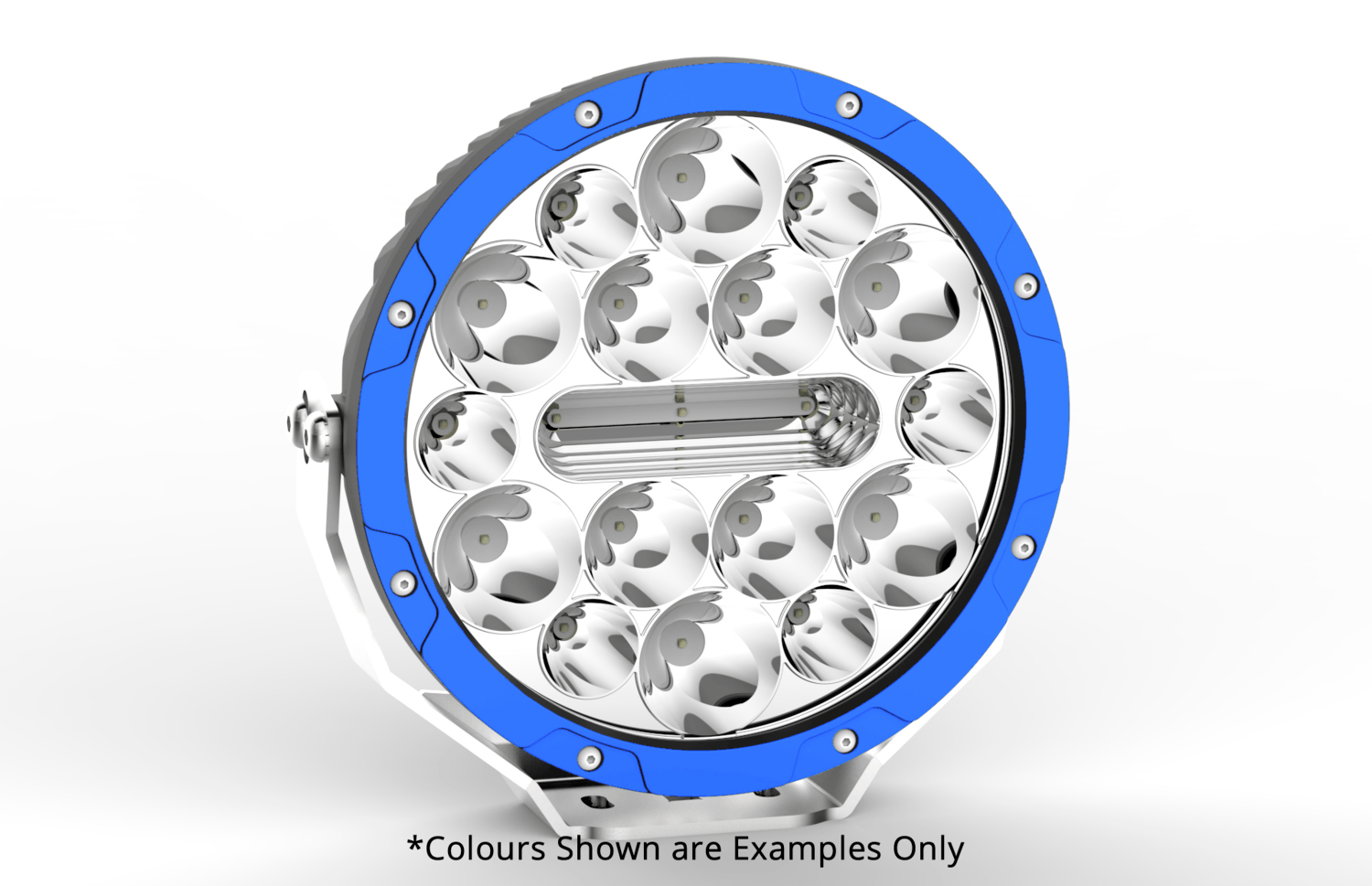

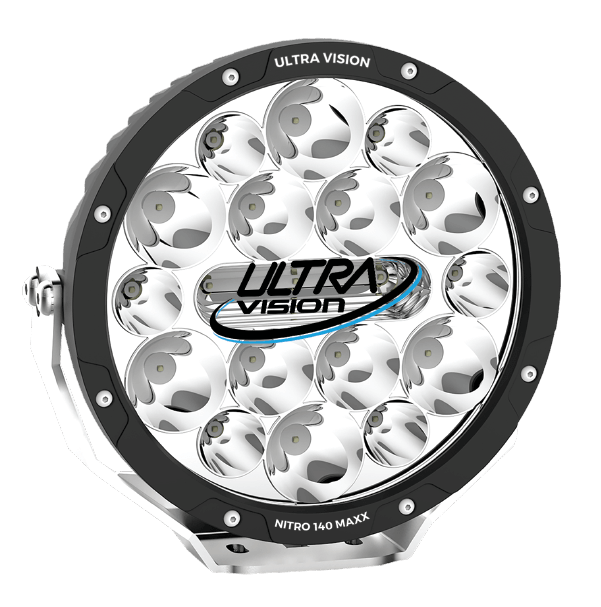

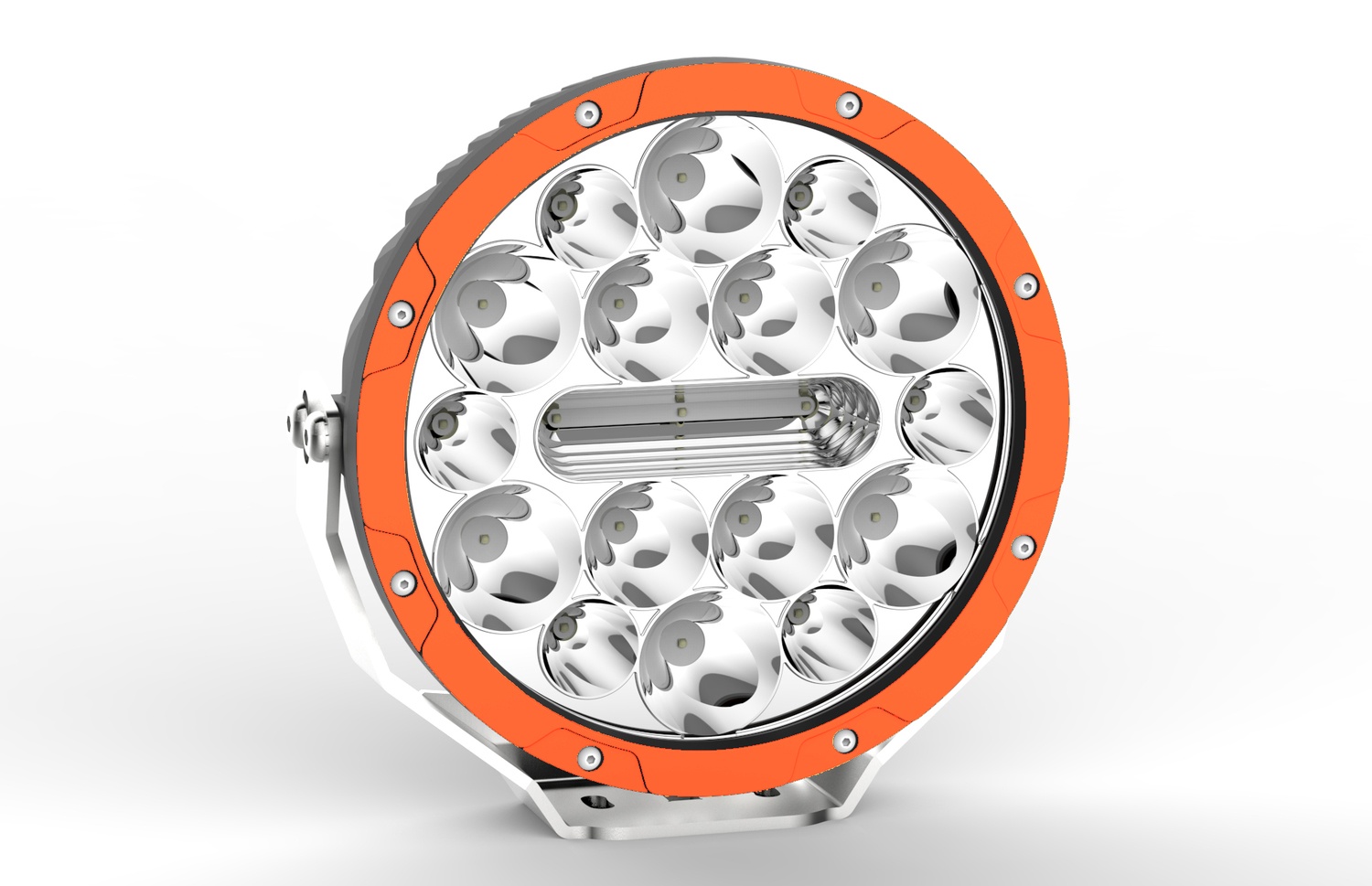

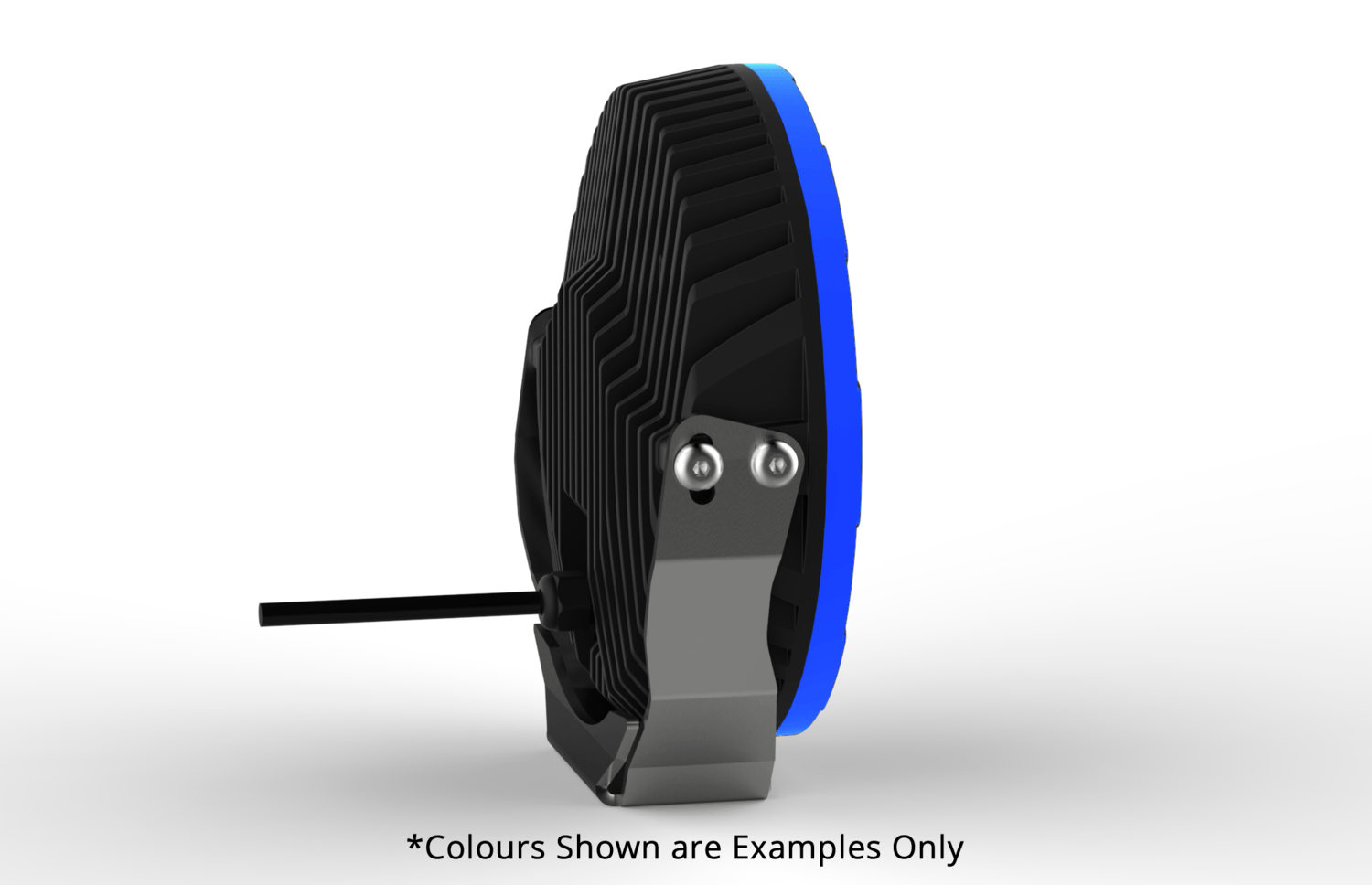

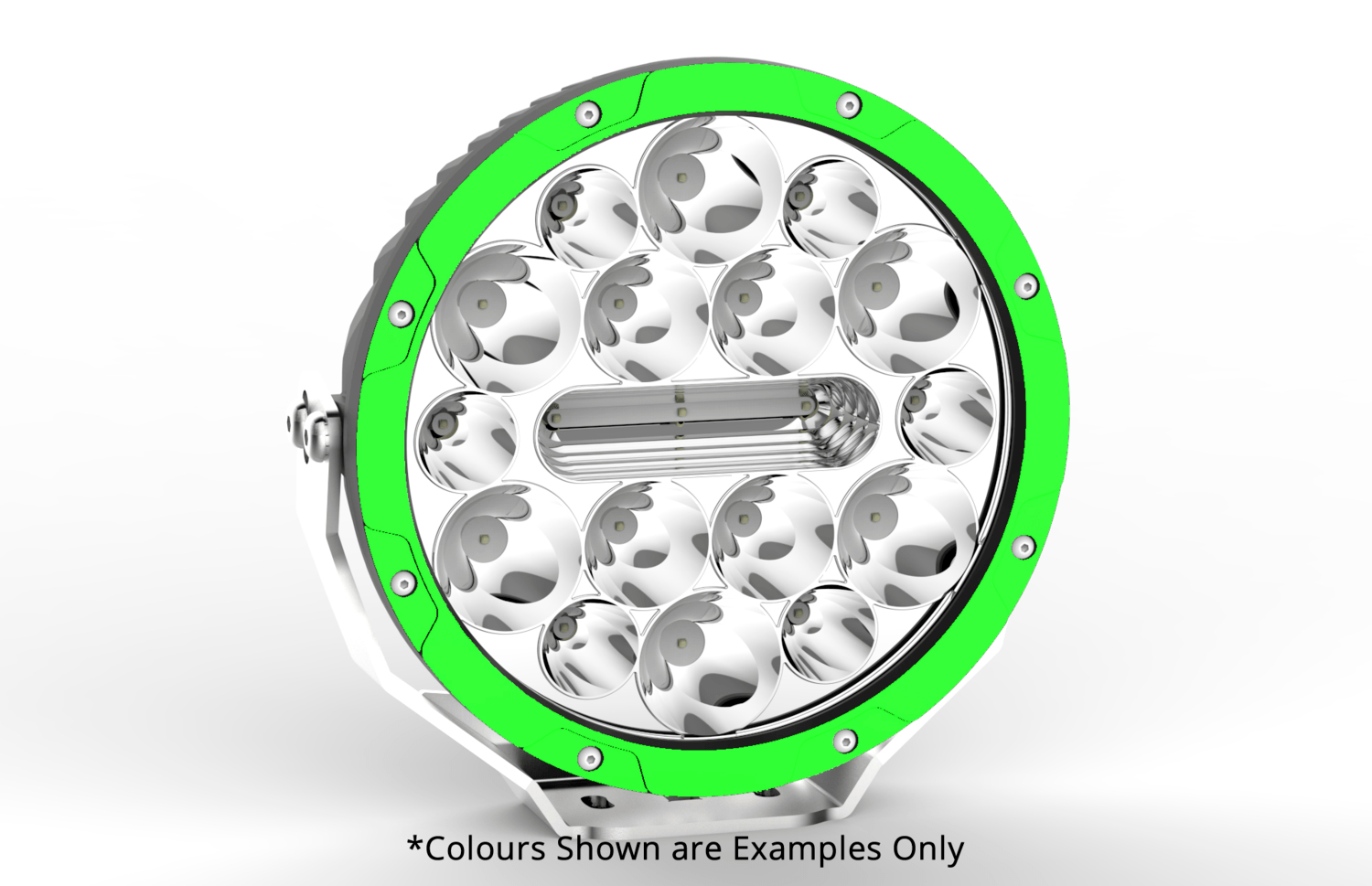

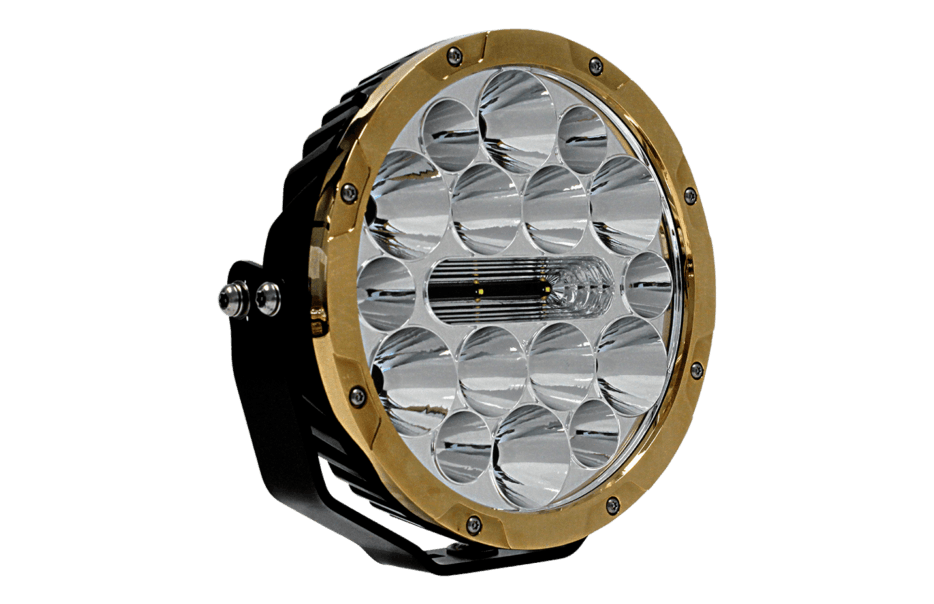

NITRO 140 Maxx LED Driving Light with optional Rim Colour Matching

Numerous factors combine together to make a good driving light.  Needless to say, to make an exceptional driving light, all these factors have to be… exceptional.  The Nitro 140 Maxx has done just this!

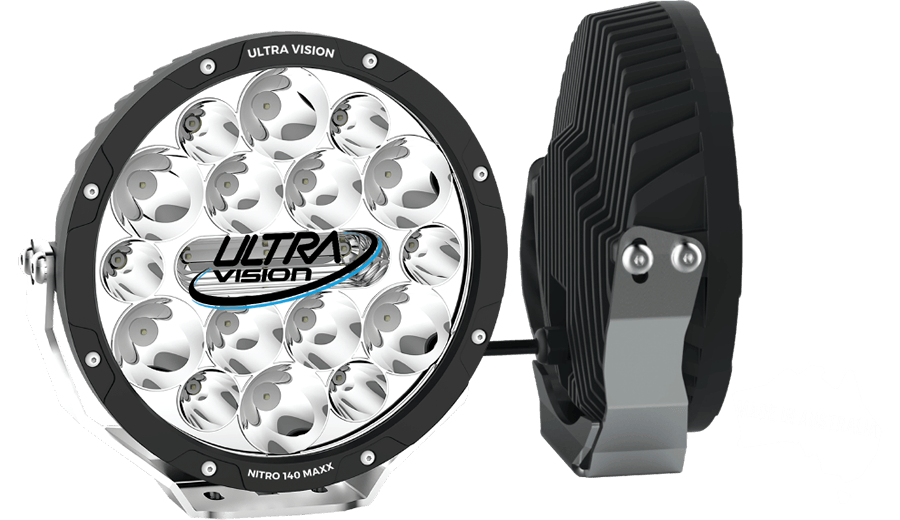

The body has been designed to reduce depth and weight, so as to increase fitment options.  The lenses are made from hardened polycarbonate and the bracket from 4mm stainless steel.  However, from the drivers’ perspective, the real science is the combination of the LED’s and the optics.

The sophisticated Contrl® optics condense the light by reducing non-functional stray beams.  Coupled with a high-efficiency Luxeon LED they produce a performance that is unmatched internationally.

Combination and Widr® beam patterns are available delivering up to 1 Lux at 1.2km.

By investing in Nitro 140 Maxx’s you can be assured that you’ve made the right choice.

Need a Wiring Diagram?

[av_button label=’Download the Nitro MAXX Driving Light Wiring Diagram Here’ link=’https://ultra-vision.com.au/wp-content/uploads/2019/02/HD-Wiring-Instructions-Grey.pdf’ link_target=” size=’small’ position=’left’ icon_select=’no’ icon=’ue800′ font=’entypo-fontello’ color=’theme-color’ custom_bg=’#444444′ custom_font=’#ffffff’ admin_preview_bg=” av_uid=’av-1y4x9y’]

4000k vs 5700k Colour Temperature

[baslider name=”ColourTemp”]

Nitro LED vs. Competitor LED lights

[baslider name=”Nitrocomparison”]

SPECIFICATIONS Nitro 140 Maxx
Wattage 140W
Light Source 6W Luxeon LED’s
Light Output – Raw 12360 Lumens/lamp
Light Output – Effective 10600 Lumens/lamp
Voltage 9V-60V
Current Draw 8.8A @ 13.5V
Operating Temperature -40°C to +80°C
Waterproof rating IP68
Connector Type Deutsch DT 2 Pin
Housing Die Cast aluminium
Lens Construction Polycarbonate
Bracket 4mm Stainless Steel
Beam Colour 4000K or 5700K
Lifespan 50’000 Hours

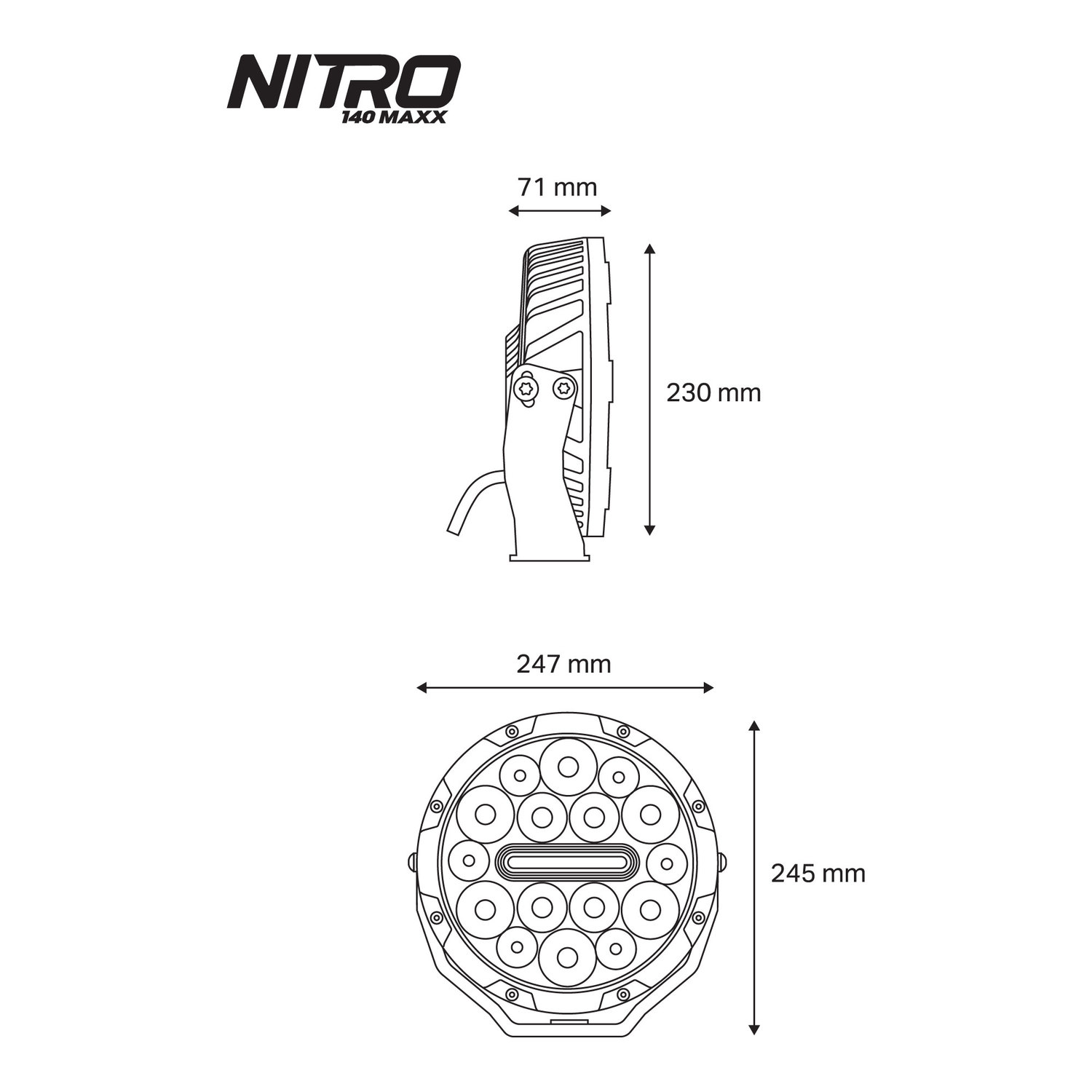

Diameter 230mm
Net Weight 2.95kg
Beams Available Combo and Widr® Beam
Warranty 5 Years
Harness and anti-theft nuts included Yes
Product Registration Number 201711542
PART NUMBERS
Combo Beam PVM2314LEDC
Widr® Beam PVM2314LEDW
