Vehicle & Mobile Equipment Lighting
NITRO 180 Maxx LED Driving Light
Many factors combine together to make a good driving light. To make a driving light exceptional, these factors have to be of a quality that takes the bar and sets it higher. With the new Nitro 180 Maxx we have done just this!

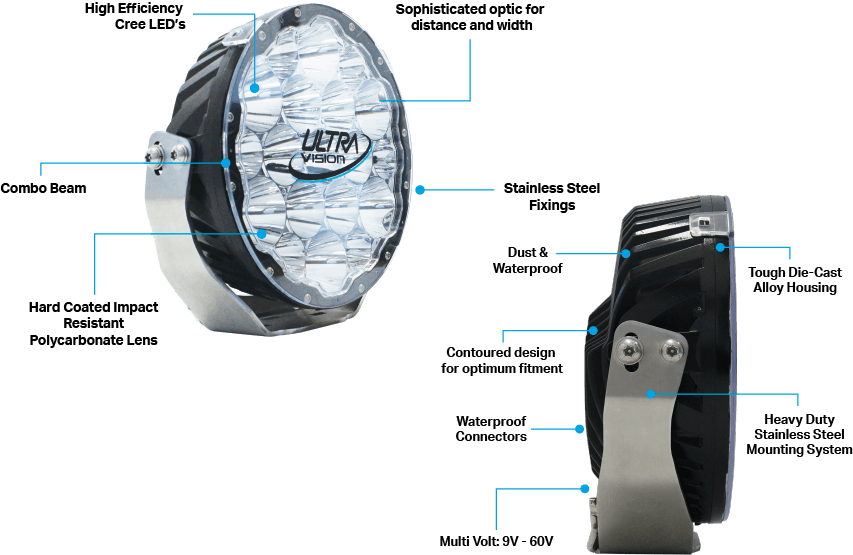

Fitment options have been greatly increased due to a clever design that reduces depth and weight, whilst the lenses made from tough hardened polycarbonate combined with a 4mm stainless steel bracket that delivers strength & durability. From the drivers’ perspective, the combination of the LED’s and the optics are where the real science.
Highly efficiency Cree LEDs combine with sophisticated Contrl® optics condense the light by reducing non-functional stray beams, producing a performance that is unmatched internationally.

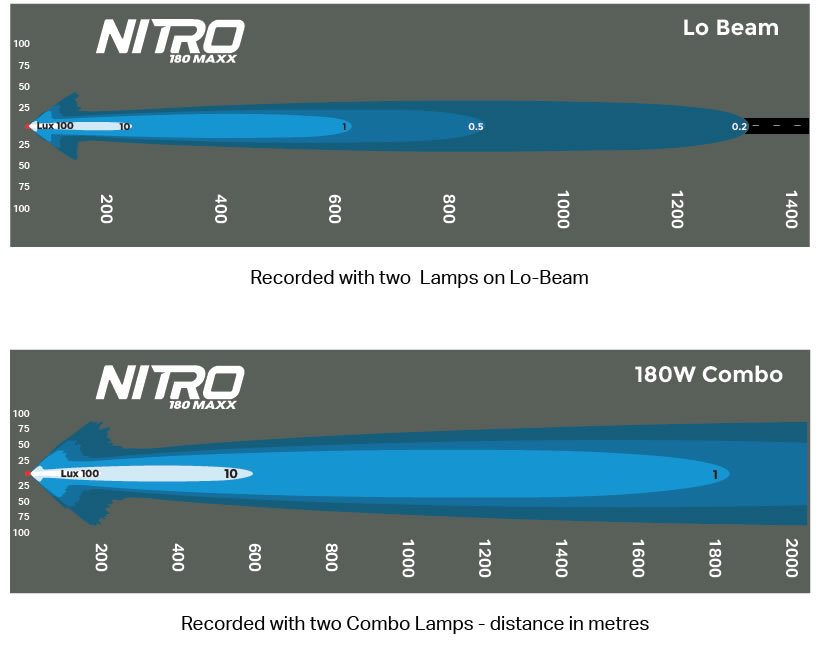

The Nitro 180 sets a completely new standard for performance in LED driving lights achieving 1 lux at 1.8km.
By investing in Nitro 180 Maxx’s you can be confident you’ve made the right choice.
Need a Wiring Diagram?
[av_button label=’Download the Nitro MAXX Driving Light Wiring Diagram Here’ link=’https://ultra-vision.com.au/wp-content/uploads/2019/02/HD-Wiring-Instructions-Grey.pdf’ link_target=” size=’small’ position=’left’ icon_select=’no’ icon=’ue800′ font=’entypo-fontello’ color=’theme-color’ custom_bg=’#444444′ custom_font=’#ffffff’ admin_preview_bg=” av_uid=’av-1y4x9y’]
4000k vs 5700k Colour Temperature
[baslider name=”ColourTemp”]
Nitro LED vs. Competitor LED lights
[baslider name=”Nitrocomparison”]

| SPECIFICATIONS | Nitro 180 Maxx |
| Wattage | 180W |
| Light Source | 19 W Cree LED’s |
| Light Output – Raw | 14600 Lumens/lamp |
| Light Output – Effective | 10978 Lumens/lamp |
| Voltage | 9-36V |
| Current Draw | 13.7A @ 13.5V |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |
| Connector Type | 2 Pin std Deutsch |
| Housing | Die Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | 4mm Stainless Steel |
| Beam Colour | 4000K or 5700K |
| Lifespan | 50’000 Hours |

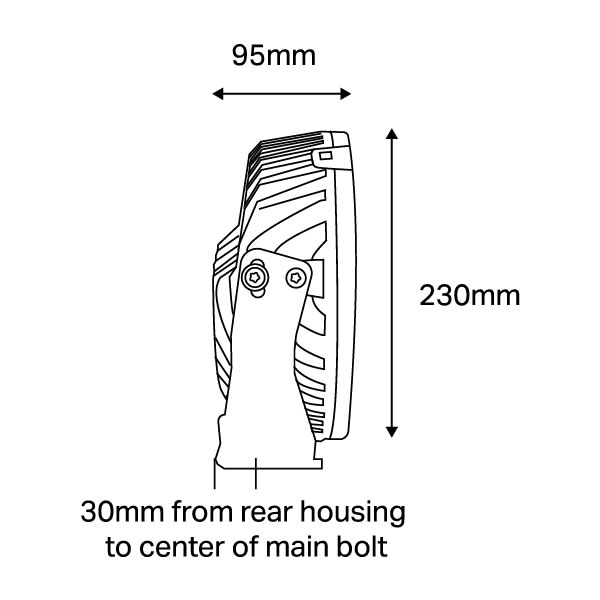

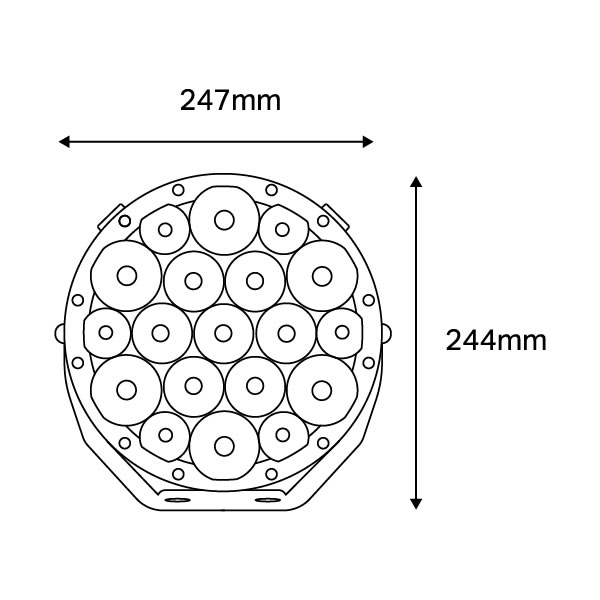

| Diameter | 230mm |
| Net Weight | 3.45kg |
| Beams Available | Combo |
| Warranty | 5 Years |
| Hi/Lo Wiring Harness & Anti-Theft nuts included | Yes |
| PART NUMBERS | |
| Combo Beam | PVM2318LEDC |
