Visi-Lift – Color Coded Safe Lifting System
Colour Coded Shackles & Slings for Ultimate Compliance
Alloy grade S colour-coded shackles have been developed in accordance with AS 2741.
These shackles are suitable for mining, resource, and construction applications.
The Visi-Lift colour-coded shackles take the guess work out of choosing the right capacity when matching lifting components.
BOW SHACKLE RANGE
| Product Code | Size | WLL | Shackle Colour | QTY per Bucket |
| 10mm x 11mm | 1t | Violet | 30 | |
| 13mm x 16mm | 2t | Green | 14 | |
| 16mm x 19mm | 3.2t | Yellow | 20 | |
| 19mm x 22mm | 4.7t | Grey | 10 | |
| 22mm x 25mm | 6.5t | Brown | 8 | |
| 25mm x 29mm | 8.5t | Blue | 4 |
All Visi-Lift grade S shackles are easily identified with prominent stamping indicating MM/YY, for quick reference of the products manufacture and working load limit. Test certificates are readily available on request.
FLAT SLING RANGE
| Product Code | WLL | Width | Lengths Available | Colour |
| FS-2-1000X0.5, FS-2-1000X1, FS-2-1000X1.5, FS-2-1000X1.8, FS-2-1000X2, FS-2-1000X2.5, FS-2-1000X3, FS-2-1000X3.5, FS-2-1000X4, FS-2-1000X4.5, FS-2-1000X5, FS-2-1000X6, FS-2-1000X8, FS-2-1000X10 |
1t | 50mm | 0.5m, 1m, 1.5m, 1.8m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 6m, 8m, 10m |
Violet |
| FS-2-2000X1, FS-2-2000X1.5, FS-2-2000X2, FS-2-2000X2.5, FS-2-2000X3, FS-2-2000X3.5, FS-2-2000X4, FS-2-2000X4.5, FS-2-2000X5, FS-2-2000X6, FS-2-2000X7, FS-2-2000X8, FS-2-2000X10, FS-2-2000X12 |
2t | 65mm | 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 6m, 7m, 8m, 10m,12m |
Green |
| FS-2-3000X1, FS-2-3000X1.5, FS-2-3000X2, FS-2-3000X2.22, FS-2-3000X2.5, FS-2-3000X2.9, FS-2-3000X3, FS-2-3000X3.5, FS-2-3000X4, FS-2-3000X5, FS-2-3000X6, FS-2-3000X8, FS-2-3000X10, FS-2-3000X12 |
3t | 90mm | 1m, 1.5m, 2m, 2.22m, 2.5m, 2.9m, 3m, 3.5m, 4m, 5m, 6m, 8m, 10m, 12m |
Yellow |
| FS-2-4000X2, FS-2-4000X2.5, FS-2-4000X3, FS-2-4000X4, FS-2-4000X5, FS-2-4000X6, FS-2-4000X8, FS-2-4000X10, FS-2-4000X12, FS-2-4000X20 |
4t | 120mm | 2m, 2.5m, 3m, 4m, 5m, 6m, 8m, 10m, 12m, 20m |
Grey |
| FS-2-5000X2, FS-2-5000X2.5, FS-2-5000X3, FS-2-5000X4, FS-2-5000X5, FS-2-5000X6, FS-2-5000X8, FS-2-5000X10, FS-2-5000X12 |
5t | 150mm | 2m, 2.5m, 3m, 4m, 5m, 6m, 8m, 10m, 12m |
Red |
| FS-2-6000X2, FS-2-6000X2.5, FS-2-6000X3, FS-2-6000X4, FS-2-6000X5, FS-2-6000X6, FS-2-6000X8, FS-2-6000X10 |
6t | 200mm | 2m, 2.5m, 3m, 4m, 5m, 6m, 8m, 10m |
Brown |
| FS-2-8000X3, FS-2-8000X4, FS-2-8000X5, FS-2-8000X6, FS-2-8000X8, FS-2-8000X10, FS-2-8000X12 |
8t | 240mm | 3m, 4m, 5m, 6m, 8m, 10m, 12m |
Blue |
| FS-2-10000X4, FS-2-1000X6, FS-2-1000X8, FS-2-1000X10, FS-2-1000X12 |
10t | 300mm | 4m, 6m, 8m, 10m, 12m |
Orange |

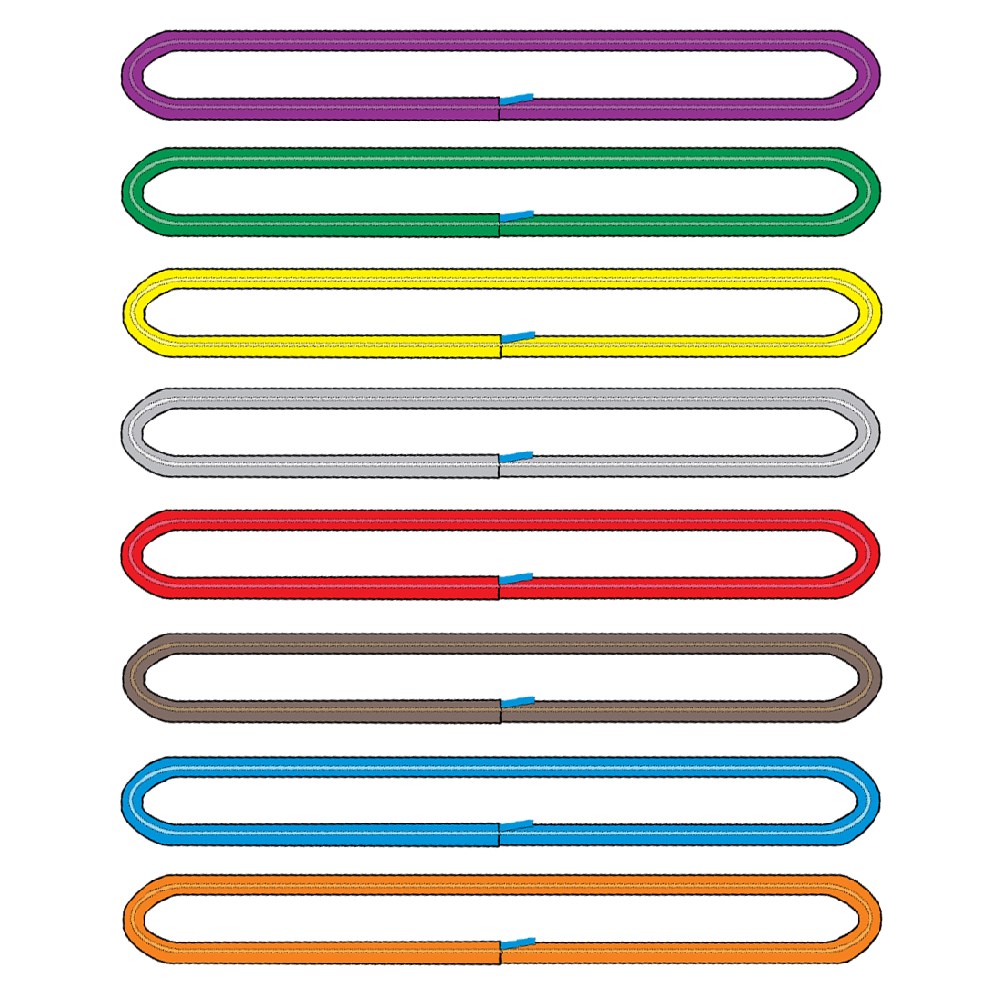

Mega Round Slings
| Product Code | WLL | Width | Lengths Available | Colour |
| MRS1000X0.5 | 1t | 47mm | 0.5m | Violet |
| MRS1000X0.75 | 1t | 47mm | 0.75m | Violet |
| MRS1000X1 | 1t | 47mm | 1m | Violet |
| MRS1000X1.5 | 1t | 47mm | 1.5m | Violet |
| MRS1000X2 | 1t | 47mm | 2m | Violet |
| MRS1000X2.5 | 1t | 47mm | 2.5m | Violet |
| MRS1000X3 | 1t | 47mm | 3m | Violet |
| MRS1000X4 | 1t | 47mm | 4m | Violet |
| MRS1000X5 | 1t | 47mm | 5m | Violet |
| MRS1000X6 | 1t | 47mm | 6m | Violet |
| MRS1000X8 | 1t | 47mm | 8m | Violet |
| MRS1000X10 | 1t | 47mm | 10m | Violet |
| MRS2000X0.5 | 2t | 51mm | 0.5m | Green |
| MRS2000X1 | 2t | 51mm | 1m | Green |
| MRS2000X1.5 | 2t | 51mm | 1.5m | Green |
| MRS2000X2 | 2t | 51mm | 2m | Green |
| MRS2000X2.5 | 2t | 51mm | 2.5m | Green |
| MRS2000X3 | 2t | 51mm | 3m | Green |
| MRS2000X3.5 | 2t | 51mm | 3.5m | Green |
| MRS2000X4 | 2t | 51mm | 4m | Green |
| MRS2000X4.5 | 2t | 51mm | 4.5m | Green |
| MRS2000X5 | 2t | 51mm | 5m | Green |
| MRS2000X6 | 2t | 51mm | 6m | Green |
| MRS2000X8 | 2t | 51mm | 8m | Green |
| MRS2000X10 | 2t | 51mm | 10m | Green |
| MRS3000X0.5 | 3t | 66mm | 0.5m | Yellow |
| MRS3000X1 | 3t | 66mm | 1m | Yellow |
| MRS3000X1.5 | 3t | 66mm | 1.5m | Yellow |
| MRS3000X2 | 3t | 66mm | 2m | Yellow |
| MRS3000X2.5 | 3t | 66mm | 2.5m | Yellow |
| MRS3000X3 | 3t | 66mm | 3m | Yellow |
| MRS3000X3.5 | 3t | 66mm | 3.5m | Yellow |
| MRS3000X4 | 3t | 66mm | 4m | Yellow |
| MRS3000X5 | 3t | 66mm | 5m | Yellow |
| MRS3000X6 | 3t | 66mm | 6m | Yellow |
| MRS3000X8 | 3t | 66mm | 8m | Yellow |
| MRS3000X10 | 3t | 66mm | 10m | Yellow |
| MRS4000X1 | 4t | 70mm | 1m | Grey |
| MRS4000X1.5 | 4t | 70mm | 1.5m | Grey |
| MRS4000X2 | 4t | 70mm | 2m | Grey |
| MRS4000X2.5 | 4t | 70mm | 2.5m | Grey |
| MRS4000X3 | 4t | 70mm | 3m | Grey |
| MRS4000X3.5 | 4t | 70mm | 3.5m | Grey |
| MRS4000X4 | 4t | 70mm | 4m | Grey |
| MRS4000X5 | 4t | 70mm | 5m | Grey |
| MRS4000X6 | 4t | 70mm | 6m | Grey |
| MRS4000X7 | 4t | 70mm | 7m | Grey |
| MRS4000X8 | 4t | 70mm | 8m | Grey |
| MRS4000X10 | 4t | 70mm | 10m | Grey |
| MRS5000X1 | 5t | 80mm | 1m | Red |
| MRS5000X1.7 | 5t | 80mm | 1.7m | Red |
| MRS5000X2 | 5t | 80mm | 2m | Red |
| MRS5000X3 | 5t | 80mm | 3m | Red |
| MRS5000X4 | 5t | 80mm | 4m | Red |
| MRS5000X5 | 5t | 80mm | 5m | Red |
| MRS5000X6 | 5t | 80mm | 6m | Red |
| MRS5000X8 | 5t | 80mm | 8m | Red |
| MRS5000X10 | 5t | 80mm | 10m | Red |
| MRS5000X15 | 5t | 80mm | 15m | Red |
| MRS6000X1 | 6t | 80mm | 1m | Brown |
| MRS6000X2 | 6t | 80mm | 2m | Brown |
| MRS6000X3 | 6t | 80mm | 3m | Brown |
| MRS6000X4 | 6t | 80mm | 4m | Brown |
| MRS6000X5 | 6t | 80mm | 5m | Brown |
| MRS6000X6 | 6t | 80mm | 6m | Brown |
| MRS6000X8 | 6t | 80mm | 8m | Brown |
| MRS6000X10 | 6t | 80mm | 10m | Brown |
| MRS8000X0.45 | 8t | 86mm | 0.45m | Blue |
| MRS8000X1 | 8t | 86mm | 1m | Blue |
| MRS8000X2 | 8t | 86mm | 2m | Blue |
| MRS8000X3 | 8t | 86mm | 3m | Blue |
| MRS8000X4 | 8t | 86mm | 4m | Blue |
| MRS8000X5 | 8t | 86mm | 5m | Blue |
| MRS8000X6 | 8t | 86mm | 6m | Blue |
| MRS8000X8 | 8t | 86mm | 8m | Blue |
| MRS8000X10 | 8t | 86mm | 10m | Blue |
| MRS8000X12 | 8t | 86mm | 12m | Blue |
| MRS10000X0.5 | 10t | 100mm | 0.5m | Orange |
| MRS10000X1 | 10t | 100mm | 1m | Orange |
| MRS10000X1.5 | 10t | 100mm | 1.5m | Orange |
| MRS10000X1.85 | 10t | 100mm | 1.85m | Orange |
| MRS10000X2 | 10t | 100mm | 2m | Orange |
| MRS10000X3 | 10t | 100mm | 3m | Orange |
| MRS10000X4 | 10t | 100mm | 4m | Orange |
| MRS10000X4.5 | 10t | 100mm | 4.5m | Orange |
| MRS10000X5 | 10t | 100mm | 5m | Orange |
| MRS10000X6 | 10t | 100mm | 6m | Orange |
| MRS10000X8 | 10t | 100mm | 8m | Orange |
| MRS10000X9 | 10t | 100mm | 9m | Orange |
| MRS10000X10 | 10t | 100mm | 10m | Orange |
| MRS10000X12 | 10t | 100mm | 12m | Orange |
| MRS10000X15 | 10t | 100mm | 15m | Orange |
| MRS10000X20 | 10t | 100mm | 20m | Orange |
